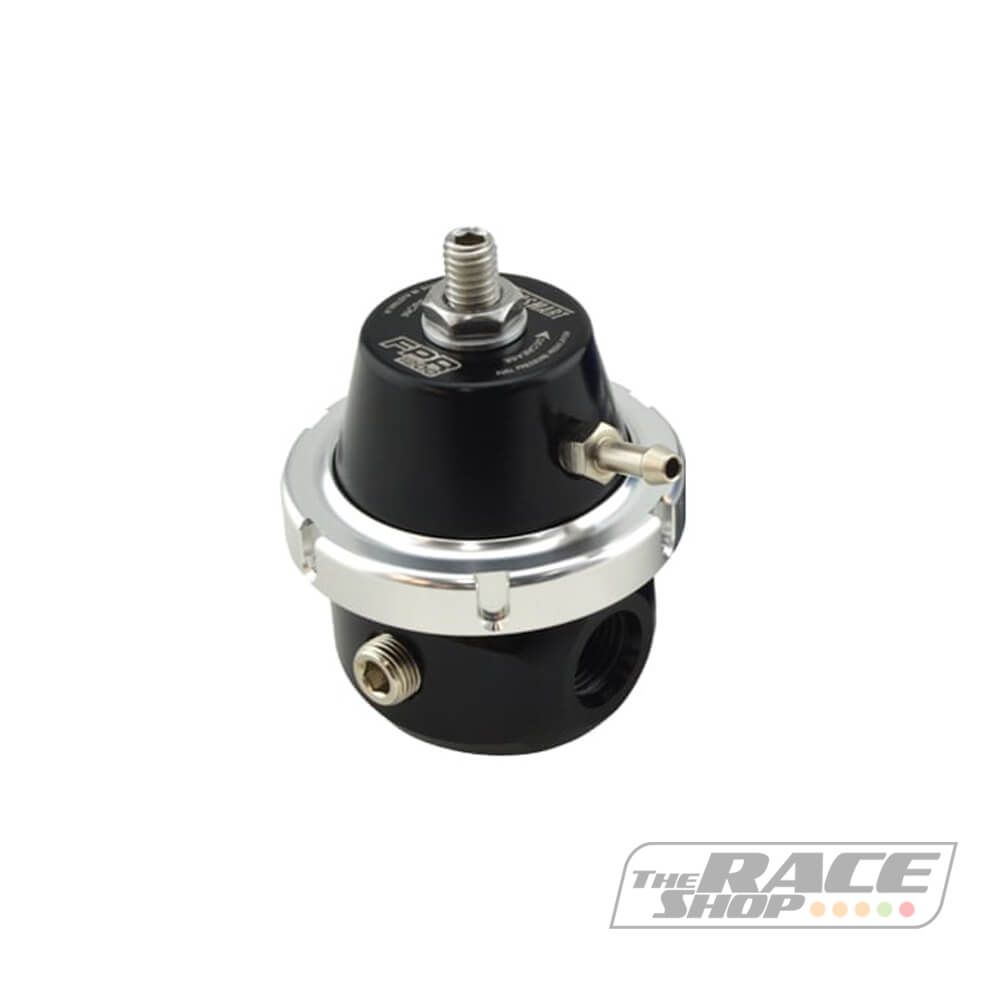

Turbosmart's FPR1200 is a motorsport proven fuel pressure regulator capable of supporting up to 1200HP fuel systems. With Stainless Steel valve and seat, MILSPEC diaphragm and industry leading 1:1 fuel ratio control, there's no application to harsh for the FPR1200. Available in Black, Blue, Red and Purple the FPR1200 is easily at home in race application or modified street car.
Featuring two -6AN inlet ports, one -6AN return port and 1/8NPT gauge port, 30-90 PSI base pressure adjustment, 1:1 ratio, premium MILSPEC diaphragm and stainless steel valve + seat allow for ANY fuel type including E85 and is suitable for engines with up to 1200hp fuel systems. Turbosmart FPR's feature a non-directional bias to regulation, so no matter where the fuel comes in they will regulate the same.
3 x -6AN ports
1/8" NPT gauge port
Capable of regulating up to 1200hp of fuel flow
1:1 manifold pressure ratio with no load losses
30-90psi base pressure range
Stainless steel internals providing maximum integrity and reliability
Suitable for all fuel types
Operational between -35ºC to +200ºC
Pressure port 1/16 NPT with hose end nipple supplied
Manufactured, Assembled and Validated in-house at Turbosmart HQ
